TEMA Types

A Simple Guide to Understanding TEMA configurations

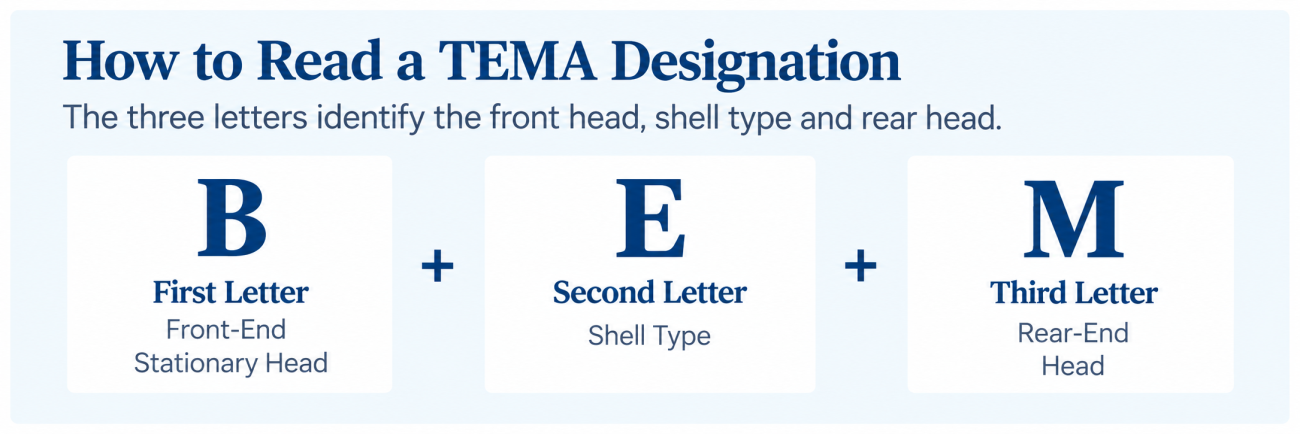

Shell-and-tube heat exchangers are commonly identified by a three-letter TEMA designation. These letters describe the front-end “stationary” head, shell type and rear-end head construction. Understanding the TEMA designation can help you identify how an exchanger is built, how it can be maintained and what applications it may be best suited for.

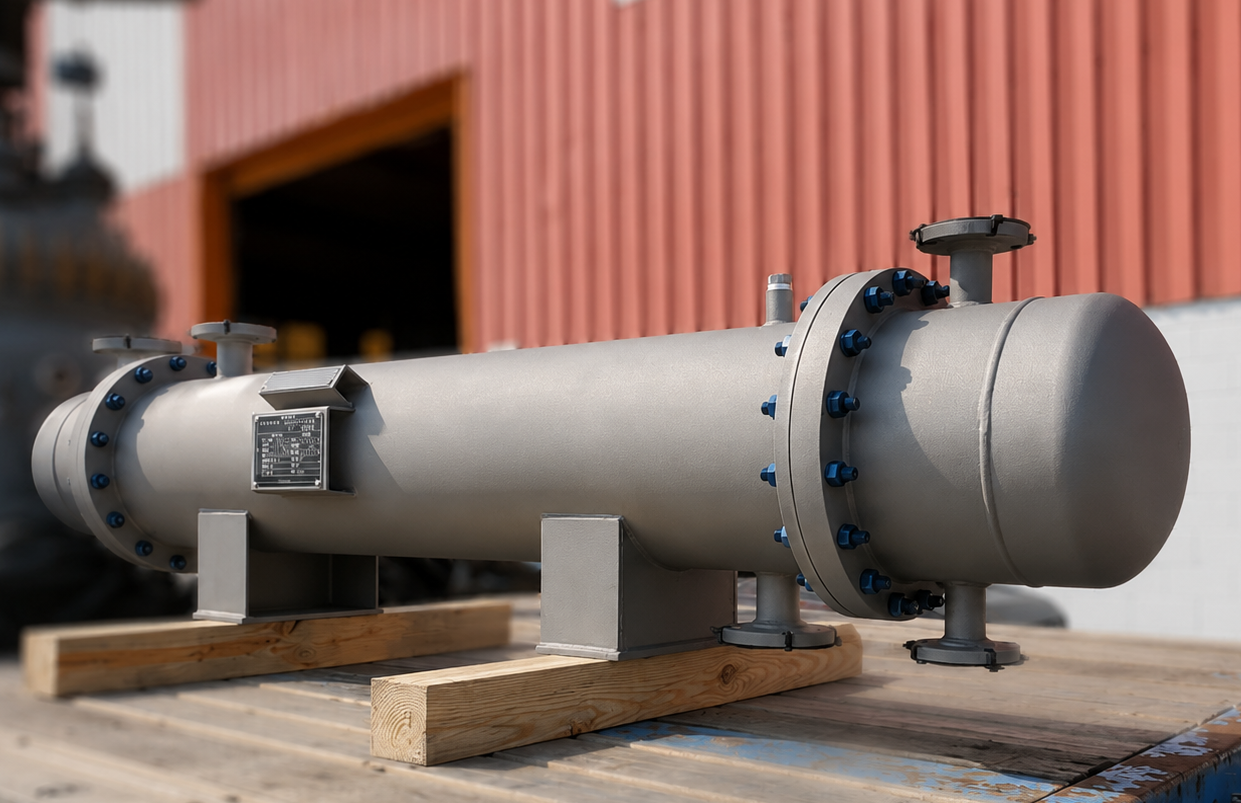

For example: a bonnet-style front head (B), one pass shell (E) and fixed tubesheet rear head (M) is one of the most common and widely used configurations. B + E + M = BEM.  Choosing the appropriate TEMA Type can be based on a combination of factors Perry will take into consideration before making a recommendation:

✓ Process Temperatures
✓ Design Pressure
✓ Design Pressure
✓ Fouling tendency
✓ Cleaning methods
✓ Fluid characteristics
✓ Pressure-drop
✓ Boiling or condensing service
✓ Available installation space

TEMA Class Typical Service
B Chemical process service
C Commercial and general process applications
R Refinery and petroleum process applications

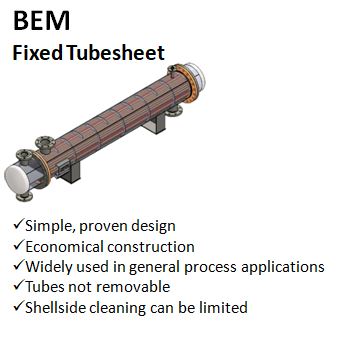

BEM Fixed Tubesheet drawing

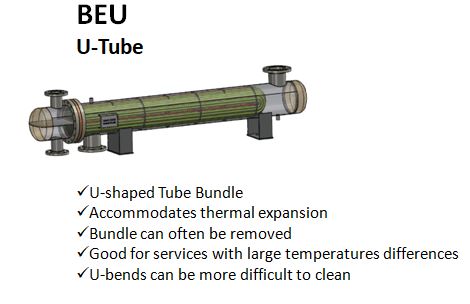

BEU U-Tube Drawing

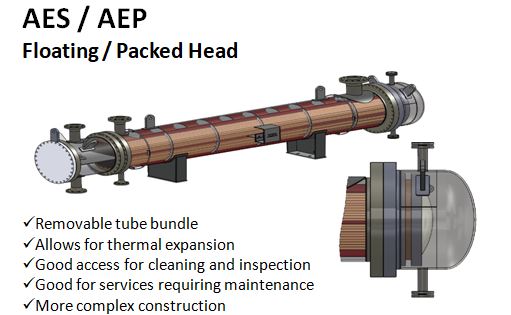

AES / AEP Floating / Packed Head drawing

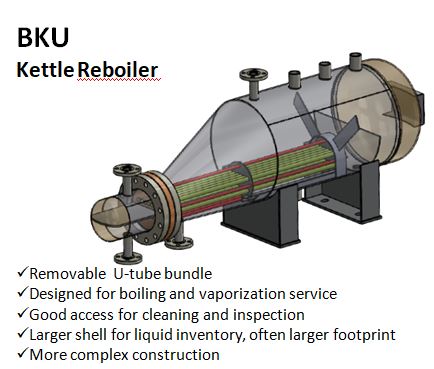

BKU Kettle Reboiler Drawing
