Sample Projects
Large Or Small – Perry Products Can Professionally Handle Your Project
Perry Products manufactures hundreds of shell and tube heat exchangers. We handle large projects with as many as 50 heat exchangers of various sizes or as small as one heat exchanger 4″ X 48″ long. Every job, large or small, is assigned a Project Manager that coordinates communication, schedules production, tracks purchased raw materials and keeps our customer informed about every aspect of their order. No project or customer is too small for Perry Products to care. We treat small orders the same as large orders. We take pride in delivering according to our customer’s needs. The projects below are examples of recently completed projects.

AEM-30-240
Perry designed this TEMA type AEM 30-240 stainless steel 316L heat exchanger unit with a special hinged opening on both the bonnet and the cover side of this fixed tubesheet heat exchanger. The condenser has seal welded tubes and the hinge feature will make access easier for any cleaning or inspections required.

Replacement Bundle AES-24-240
This was a floating head tube bundle Perry fabricated to fit into existing shell at customer's site. Perry was able to upgrade the material of construction by using the weld overlay method which allows for the highly corrosion resistant alloy on the wetted side while maintaining the mechanical size of the original design.

Rush Replacement Channel Boxes
Build on an emergency basis, Perry rushed these large channel boxes in 2 weeks for an urgent replacement requirement. The body flanges are cut from SA-240 plate material in order to jump on the job in our machine shop. Our trusted material vendors always play an essential role in our ability to execute on a expedited basis.

Quick Ship Stock Heat Exchanger
Perry has a line of partially fabricated, stock heat exchangers ready to ship with custom nozzle locations and sizes within 1 to 4 weeks after order. This is our 8" option.

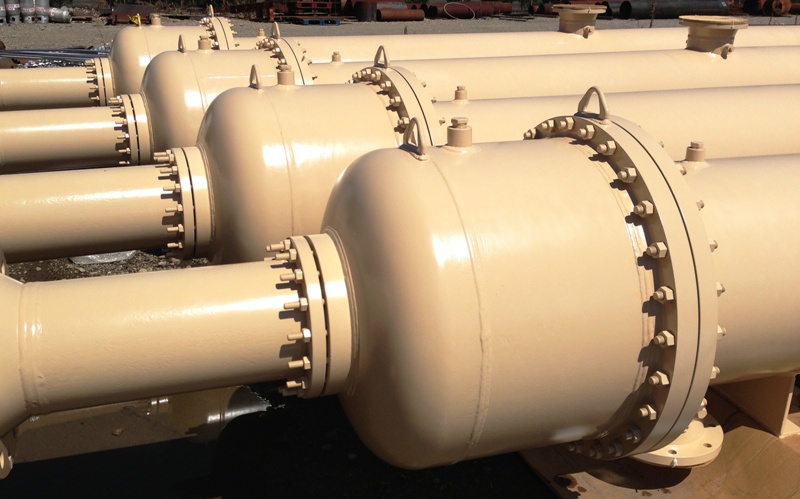

BJS-24-240
These 4 gas aftercoolers were designed and built for parallel operation for a natural gas compressor station in the Great Lakes region. Each heat exchanger includes 450 admiralty brass tubes and a floating head assembly.

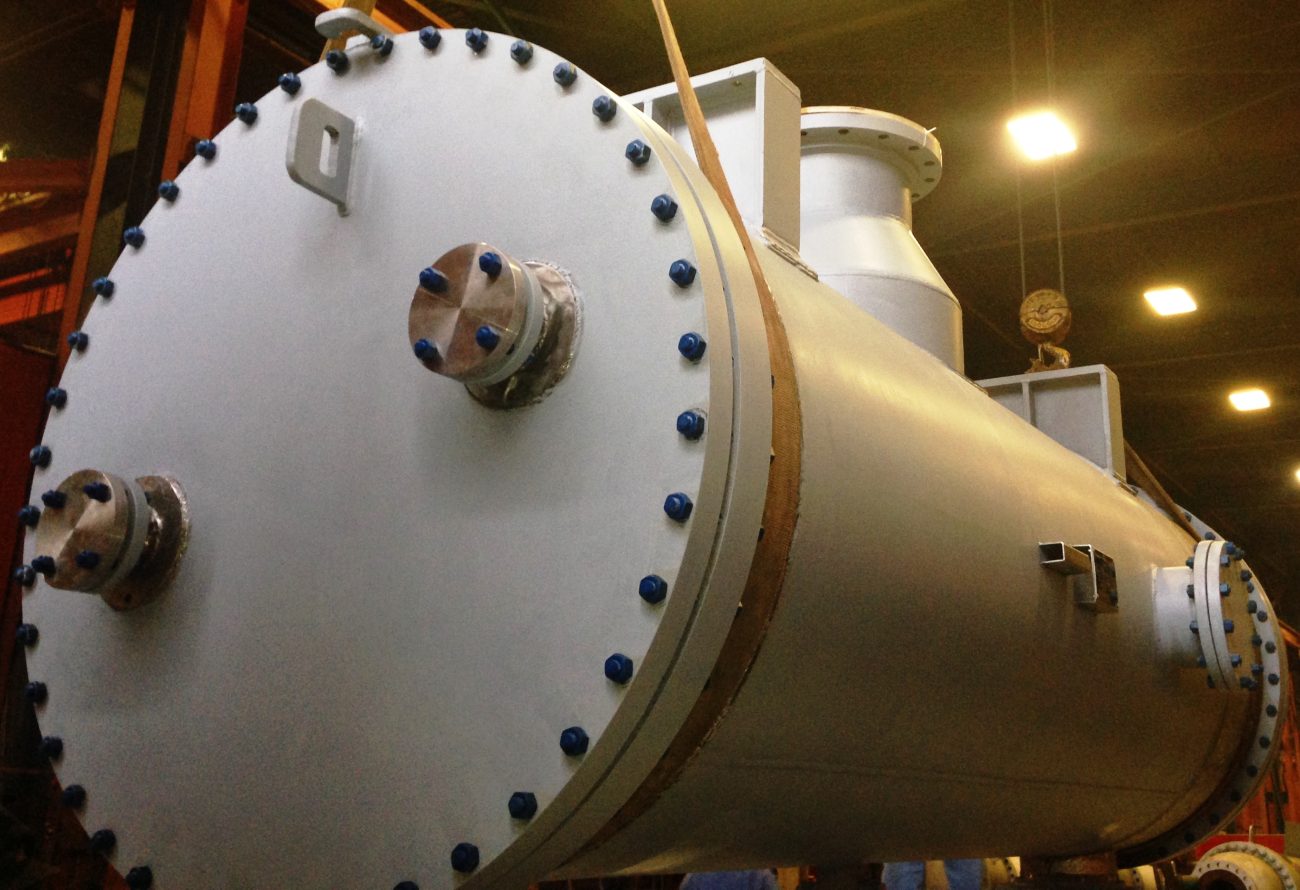

NGN-51-120
This split flow heat exchanger was designed and built for use in the manufacture of Barium and Strontium compounds and its coproducts. The heat exchanger unit includes a 52” outside diameter shell with (586)NGN-51-120 1 ¼” O.D. Alloy 200 seamless tubes. The malleability of working with Nickel 200 proved a challenge but one Perry could solve using some quick thinking and a lot of hard work.
